Model fittings

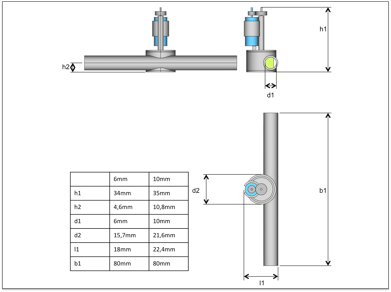

Bow Thruster for small boat models
Available in two versions:
•small:
6mm inner diameter channel, 80mm width
•large:
10mm inner diameter channel, 80mm wide
•low height:
5mm inner diameter, reduced height inside hull
The thruster can be adapted to different models. It needs to be completed with a motor, shaft and gear.
Please find more details and measures in the assembly instructions in the download section.
The thrusters are available in various materials. You will need to register at Shapeways, the order is handled through their service, delivery takes usually 2...3 weeks.
Price range (depending on material):
10.31 EUR to 21.70 EUR
Small thruster:
Large thruster:
Low height thruster:

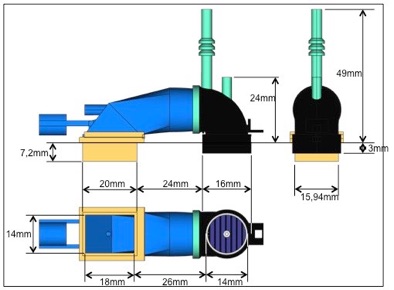

GillJet / Azimuth Thruster for small boat models
The thruster can be adapted to different models. It needs to be completed with a motor, shaft and gear, and it needs a steering system (gears, shaft, servo).
Please find more details and measures in the assembly instructions in the download section.
The thruster is available in various materials. You will need to register at Shapeways, the order is handled through their service, delivery takes usually 2...3 weeks.
Price range (depending on material):
23.87 EUR to 39.07 EUR
Thruster at Shapeways:
20 Foot Container in 1:200 scale and 1:350 scale
Small container printed in various colors as payload for small models.
The container is available in various materials. You will need to register at Shapeways, the order is handled through their service, delivery takes usually 2 weeks.
Container in 1:200 at Shapeways:
Container in 1:350 at Shapeways:
9 containers 1:350 at Shapeways (on sprue):
Stern tube oil connectors
Four T-shaped connectors to add a vertical oil tube to a 2mm diameter stern tube to build small propulsion systems. If you want to print it yourself, the source file is available in the downloads section as STL and as a FreeCAD file.
2mm tube connectors at Shapeways:
Azimuth thruster with 13mm propeller
Two thrusters that can be made to work using a 4mm motor (M450 type motor) to use as propulsion system for small RC boats. Also serves as a spare part for HMCS Kingston.
Size: each thruster (main pod) has the following dimensions
6.9mm wide
12mm tall
9.9mm long
Inside hole for steering shaft: 2mm diameter
Thruster at Shapeways:
A video of how the thruster works is available here:
